Peerless in performance, configurability and sound quality, the Trinnov Altitude 32 remains the unchallenged reference processor for Immersive home theatre systems.
Nothing has been left to chance: high-channel count, huge processing power and exclusive patented technologies unleash the full potential of immersive sound, enabling all formats and the widest range of speaker layouts.
This is the benchmark that all other AV processors are measured against, It is the definitive reference to high-end home theater processors. Over the years there has been a handful of products that really stop me in my tracks and the Trinnov Altitude 32 joins that small elite group of industry defining products.
– Guy Singleton, Imagine This (UK)
The acoustics of a room affects the sound that you hear coming from your speakers which in turn affects the way you manipulate your mix. Traditional methods of acoustic treatment will help to control this but there are still artefacts that cannot be corrected by acoustics alone. Trinnov Audio has developed a range of stereo and surround optimisers using the latest DSP real-time processing that will improve the accuracy of your room through your speaker system.
Trinnov has applied the results of breakthrough research in loudspeaker/room acoustics to create a new generation of loudspeaker processors, setting a new benchmark for accurate sound reproduction. The Trinnov Optimizer takes mix translation to the next level.
While the room and the loudspeakers need to be analysed and eventually treated separately by most technologies on the market, the Optimizer considers and addresses every aspect of the reproduction system in its acoustic environment at the same time. Problems are identified, cross-analysed and compensated with the most efficient and best-sounding compromise.
In a league of its own, the Trinnov Altitude 32 has no peer when it comes to immersive sound decoding and playback. Nothing has been left to chance: high-channel count, huge processing power and exclusive patented technologies unleash the full potential of immersive sound, enabling all formats and the widest range of speaker layouts.
Trinnov Audios pure, uncompromised implementation of 3D Codecs, made possible through their own software, enabled them to deliver the full specifications and channel count of both Dolby Atmos and DTS:X Pro years ahead of the competition.
The Dolby Atmos Object Viewer provides the user with a real-time view of the location and movement of sound objects in 3D space for all Atmos content
The Trinnov Altitude 32 remains the only AV Processor on the market capable of decoding and rendering Dolby Atmos Home content in its full 24.x.10 channel count.
In addition, The Trinnov Altitude 32 is the only processor capable of native rendering and upmixing with DTS’s full count of 30.2 channels, delivering the highest spatial resolution with all content.
Lastly, Auro-3D, using up to 13.1 channel configuration, has been available on the Altitude32 since 2015. The popular Auro-Matic upmixer is also supported for all inputs.
Trinnov Audios world-renowned Loudspeaker/Room Optimizer is recognized as best-in-class by users and reviewers across the professional, commercial cinema, and high-end home audio worlds. Introduced to the pro audio market in 2006, its revolutionary solution was quickly embraced by many of the most demanding music, broadcast, and post-production sound engineers.
This same technology, enhanced and refined over the years, is at the heart of the Altitude. To this day, the Optimizer remains the most powerful and flexible calibration system available.
HDMI and its evolving standards continue to create challenges for manufacturers, integrators and end users. Rest assured that the Altitude philosophy of sustainability applies to HDMI. The Altitude’s modular hardware design ensures that future developments of the HDMI standard will not make the processor obsolete. All Altitudes will be upgradeable to HDMI 2.1.
Today, our proprietary software platform enables users to monitor and analyze all incoming and outgoing HDMI data directly on the Altitude, in addition to providing unique tools that can address HDMI incompatibility issues.

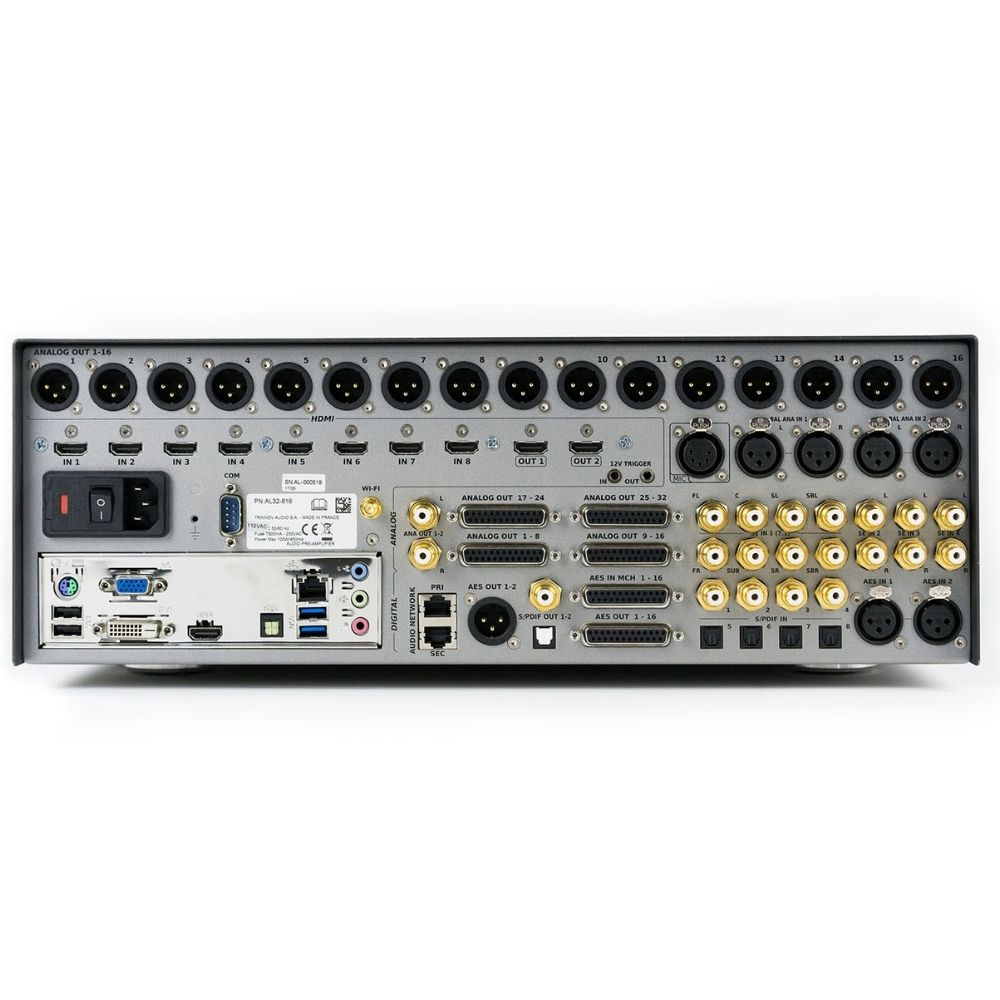

| Microphone Input | 1x 5 Pin XLR for 3D Microphone |
| Balanced Inputs | 2x Stereo |
| Unbalanced Inputs | 3x Stereo RCA, 1x 7.1 RCA |
| Balanced Outputs | 8x (8-8), 16x for other models |
| Unbalanced Outputs | 1x Stereo RCA |
| DB25 Analogue Outputs | 8x (8-8), 16x (8-16), 24x (16-24) and 32x (24-32) |
| S/PDIF Inputs | 4x (2 Optical, 2 Coaxial) |
| S/PDIF Outputs | 2x (1 Optical, 1 Coaxial) |
| AES3 Inputs (XLR) | 2x |
| AES3 Outputs (XLR) | 1x |
| AES3 Outputs (DB25) – (8-8, 8-16) | 8x, Upgradeable to 16x |
| AES3 Outputs (DB25) – (16-24, 24-32) | 16x |
| AES3 Input Compliance | DCI |
| Audio Network | Dual ports (For future use) |
| Video Output 1 | HDMI 2.0/HDCP 2.2 |
| Video Output 2 | HDMI 2.0/HDCP 2.2 |
| Inputs | 8 |
| Maximum Resolution | 4K UHD on all I/O |
| Maximum Bandwidth | 18 Gbps on all Inputs |
| Frame Rates Supported | 24/25/30/50/60 fps (UHD), 120 fps (HD) |
| ARC/eARC | Available on Output 1 |
| 4K to 1080p Downscaling | Available on Output 1 |
| OSD | Volume Information displayed On-screen |
| Max Channels | 12x (8-8), 20x (8-16), 28x (16-24), 36x (24-32) |
| Max Optimizer Channels | 12x (8-8), 20x (8-16), 28x (16-24), 36x (24-32) |
| Max Subwoofers | 12x (8-8), 20x (8-16), 28x (16-24), 36x (24-32) |
| Max Crossovers (2/3/4 way) | 6/4/3 (8-8), 10/6/5 (8-16), 14/9/7 (16-24), 18/12/9 (16-32) |
| Full I/O Matrix (All Versions) | Yes |
| Configuration Presets (All Versions) | 29 |
| Power Supply | 240V/110V – 50/60 Hz (Manual Switch) |
| Power Consumption | 132W Max |
| Thermal Conversion | 450 BTU/h Max |
| Mains Fuse | 2A Slow Blow |
| Internal PSUs | Separated Supplies for Audio Processing |
| Dimensions | 16x |
| AES3 Input Compliance | DCI |
| Audio Network | Dual ports (For future use) |
| Video Output 1 | HDMI 2.0/HDCP 2.2 |
| Video Output 2 | HDMI 2.0/HDCP 2.2 |
| Inputs | 8 |
| Maximum Resolution | 4K UHD on all I/O |
| Maximum Bandwidth | 18 Gbps on all Inputs |
| Frame Rates Supported | 24/25/30/50/60 fps (UHD), 120 fps (HD) |
| ARC/eARC | Available on Output 1 |
| Data Precision | 64 Bits, Floating Point |
| Max Sampling Rate (Up to 24 Channels) | Native, Up to 192 kHz |
| Max Sampling Rate (Up to 32 Channels with +4 Option) | Native, Up to 96 kHz |
| Max Sampling Rate (Above 24 Channels) | Native, Up to 96 kHz |
| Max Sampling Rate (Above 32 Channels) | Native, Up to 48 kHz |
| Dolby Atmos® Native Decoding & Up-mix | Up to 34 Discrete Channels |
| Auro-3D® Native Decoding & Up-mix (Auromatic) | Up to 13.1 |
| DTS:X® Pro Native Decoding & Up-mix | Up to 30.2 |
| Speaker Layouts Support | All |
| IMAX Enhanced | Yes |
| Dolby | Digital®, Digital Plus® and TrueHD® |
| DTS | Digital Surround®, High Res Audio® and HD Master Audio® |
| PCM | Up to 24 Bits/192 kHz |
| Roon | Yes |
| Processor | Intel Multi Core Hyper Threaded |
| ADC Resolution/Sampling Rate | 24 Bits/96 kHz |
| DAC Resolution/Sampling Rate | 24 Bits/192 kHz |
| A/D Signal-to-noise Ratio | 119 dB (A-weighted) |
| D/A Signal-to-noise Ratio | 118 dB (A-weighted) |
| Reference Level | +18 dBu @ 0 dBFS (Balanced) |
| Clock/Jitter Attenuation | > 50 dB above 100 Hz |
| Cooling System | Custom Heat Sinks + Additional Silent Fans |
| Safety Components | AntiPop Relays on each Output |
| Power Requirement | 240V/110V – 50/60 Hz (Manual Switch) |
| Power Consumption | 132W Max |
| Thermal Conversion | 450 BTU/h Max |
| Mains Fuse | 2A Slow Blow |
| Internal PSUs | Separated Supplies for Audio and Processing |
| Dimensions (W x H x D) | 442 x 165 x 445 mm |
| Shipping Dimensions (L x H x P) | 740 x 590 x 300 mm |
| Weight | 14.5 kg/32 lbs |
| Shipping Weight/Volume | 22.2kg/0.131 m3 |
| Rackmounting | 3.5U with Rack Ears Included |
