£4,395.00 (£3,662.50 ex VAT) – £5,230.00 (£4,358.33 ex VAT)

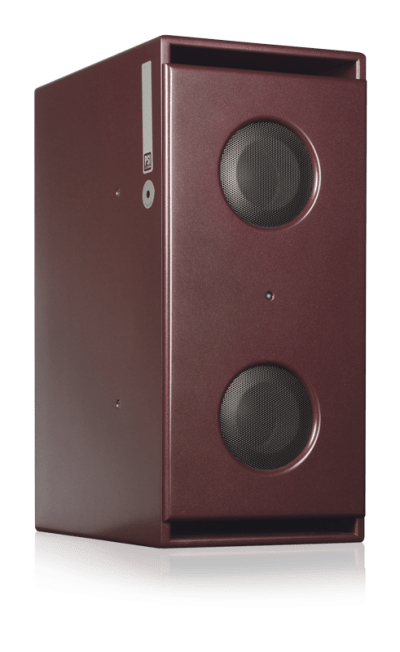

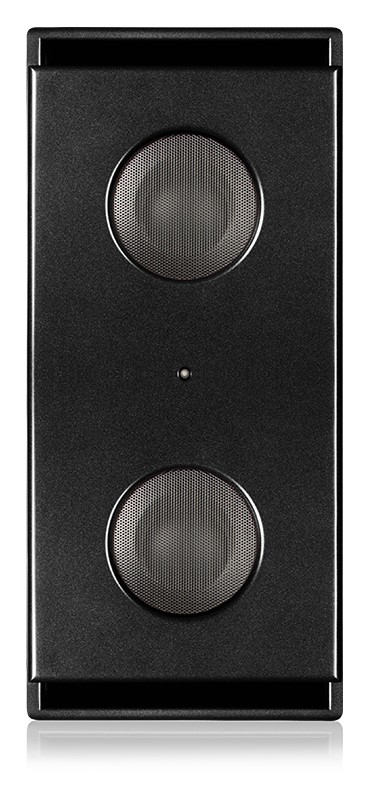

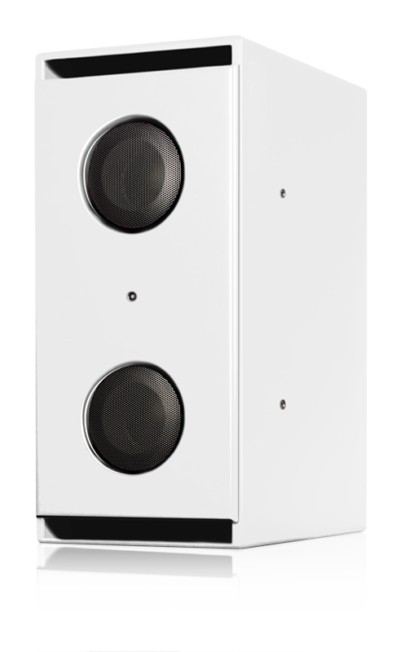

An exceptional piece of acoustic design, the PSI Audio A225-M sub-woofer/bass extension is equally suited to use as a mono sub-woofer in a surround sound application or as a bass extension in a stereo system. Taking the guesswork out of the bass management, the A225-M grants an accurate representation of what is really going on “down below”.
“The real trick is to simultaneously provide a pure neutral processed signal and bypass all the obstacles on the road to obtain it. PSI Audio staff challenged laws of physics and mechanical constraints. Engineers from the company PSI Audio mastered this art.”
– Estrada iStudio!, Poland
For those who want more than just “some bass”: the A225-M is the ideal addition to any PSI Audio monitoring system, granting the same trademark fidelity to the lowest frequencies – precision down to 24 Hz!
PSI Audio has translated its general approach of unaltered, maximum fidelity reproduction to the bass spectrum, allowing for a riveting experience that will change the way you work. Take control and create a sonic wonderland that reaches throughout the entire spectrum with no insecurities and no need to double-check your work on a different system. Get a subwoofer you can trust.
If you use a surround system or are working with several different speakers, our R&B – Router & Bass management System – could save you a lot of time.
R&B is an 8 in / 8 out transparent matrix that will fit into A225-M and help you selecting the speakers you are working with.
Please note that R&B is an option for the Sub A225-M and is not included as standard.
The powerful class G outputs feature PSI Audio‘s unique “AOI” output stages, giving the A225-M an unprecedented impulse behaviour. Each driver and amplifier unit is secured by a protection circuit, which is monitored by a red LED on the front panel.
The electronics are housed in a unit mechanically isolated from the speaker cabinet to avoid resonance at high sound pressure levels. To provide stability and avoid cabinet resonance A225-M is built with a double-box design, combining two cabinets into a single beautifully finished unit.
PSI Audio A225-M can also include the LFE Module, an optional enhancement for the PSI Audio Sub A225–M subwoofer. This new module allows the Sub A225–M to act as an LFE speaker in immersive and surround setups, meeting Dolby Atmos requirements. The LFE input and the normal subwoofer inputs can be used simultaneously. With the new LFE Module, the Sub A225–M by PSI Audio becomes the perfect LFE speaker for immersive audio in professional studios and discerning home cinema applications.
| Potential peak power | 480 W |
| Continuous max SPL @ 1m | 108 dB |
| Short term max SPL @ 1m | 111 dB |
| Peak max SPL @ 1m | 115 dB |
| Signal to noise ratio (S/N) | 102 dB |
| Bandwith at -6 dB | 24-100 Hz |
| SPL tolerances | ±2.0 dB |
| Phase tolerances | ±45 (300 Hz – 500 Hz) degrees |
| System | 1 way |
| Woofer exterior diameter | (2x) 293 mm |
| Woofer diaphragm diameter | (2x) 213 mm |
| Dimensions W x H x D | 320 x 700 x 500 mm |
| Net Weight | 35.6 kg |

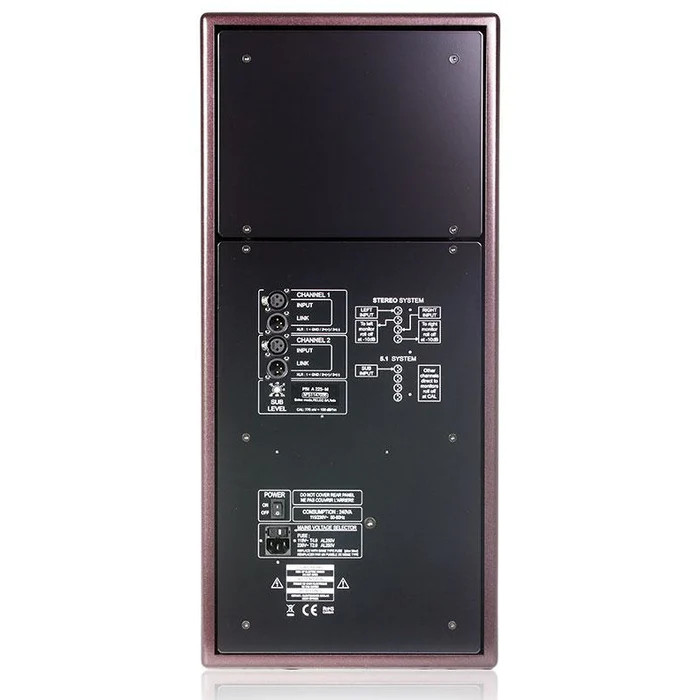

| Input connector | 2 x XLR F2 x XLR M |
| Warranty | 5 (+1) Years |
