“Swiss speaker gurus PSI Audio have never failed to impress us with their technical innovations, and their latest model is no exception! The natural details of female voices and higher‑pitched acoustic instruments, if they have survived the tracking and mixing processes, are reproduced spectacularly.”

– Phil Ward, Sound on Sound UK

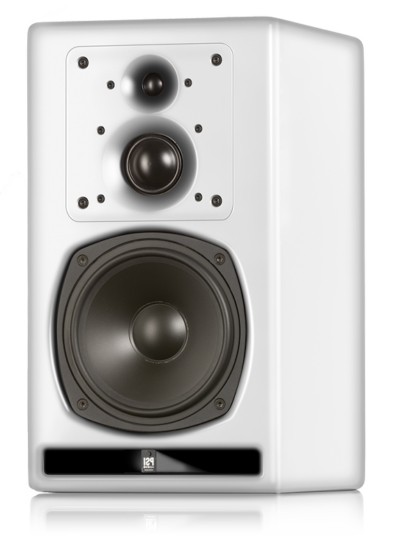

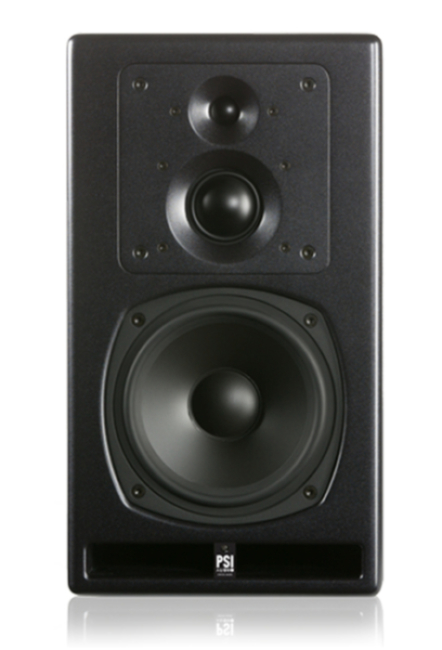

The PSI Audio A23-M: Design and Production Like No Other

The PSI Audio A23-M is the perfect companion to fill the gap between near-field and midfield speakers and allows for a more accessible integration in studio environments due to the more compact three-way design. Yet, it still stands impressively strong as a full-range monitor, producing an exceptional stereo image that even the most distinguished audiophile will love.

The PSI A23-M features all analogue technology, and as always you get all the much-loved PSI technologies including tri-powered amps, AOI and CPR along with the innovative Acoustic Load Guide (ALG). ALG has been meticulously crafted to optimise directivity as well as maximising sound pressure level and extending bandwidth in the tweeter.

The sound that has earned PSI Audio the respect of sound professionals all around the world. Building on the renowned A25-M, PSI Audio has created a more compact A23-M that retains the outstandingly accurate, mastering-grade audio reproduction. Assess the entire frequency range effortlessly even without a subwoofer – although you can opt to enhance the A23-M with a Sub A225-M, of course. Whatever story you need to tell, the A23-M helps you along the way – and once you have heard it, you certainly will not go back.

The combination of AOI along with other PSI Audio technologies like Compensated Phase Response, means that the outcome is utterly exceptional sonic performance. All PSI Audio speakers use AOI and deliver absolute clarity and precision, with all the frequencies in their right places and all the transients fully intact. Impeccably natural audio, as it should be.

PSI Audio A23-M: Specifications and Key Features

Potential peak power 310 + 120 + 55 W
Continuous max SPL @ 1m 108 dB
Short term max SPL @ 1m 111 dB
Peak max SPL @ 1m 122 dB
Signal to noise ratio (S/N) 100 dB
Bandwith at -6 dB 34-23,000 Hz
SPL tolerances ±1.5 dB
Phase tolerances ±45 (250 Hz – 20 kHz) degrees
Dispersion (H x V) 85 x 40 degrees
System 3 ways
Crossover frequency 620, 3300 Hz
Woofer exterior diameter 240 mm
Woofer diaphragm diameter 172 mm
Tweeter exterior diameter 100 mm
Tweeter diaphragm diameter 27 mm
Dimensions W x H x D 280 x 500 x 340 mm
Net Weight 18 kg
Input connector 1 x XLR F / 3P
Warranty 5 (+1) Years
  • 100% Analogue – No DSP
  • Flat frequency response
  • Perfect stereo image
  • Accurate response all the way down to 34Hz
  • Handmade midrange driver and tweeter
  • Tweeter mid-unit can be swivelled 90°
  • Class G/H Amplifiers
  • Individually calibrated
  • 5 + 1 years warranty
  • Handmade in Switzerland





PSI audio a23M frequency response graph

Each speaker is individually calibrated in an anechoic chamber and is delivered with its frequency response sheet, just as a proof of quality.

PSI audio family all speakers graphic

Downloads

PSI User Manual

Download

PSI A23-M Tech Data

Download

PSI A23 Sound on Sound Review

Download
