£3.76 - (£3.13 ex VAT)

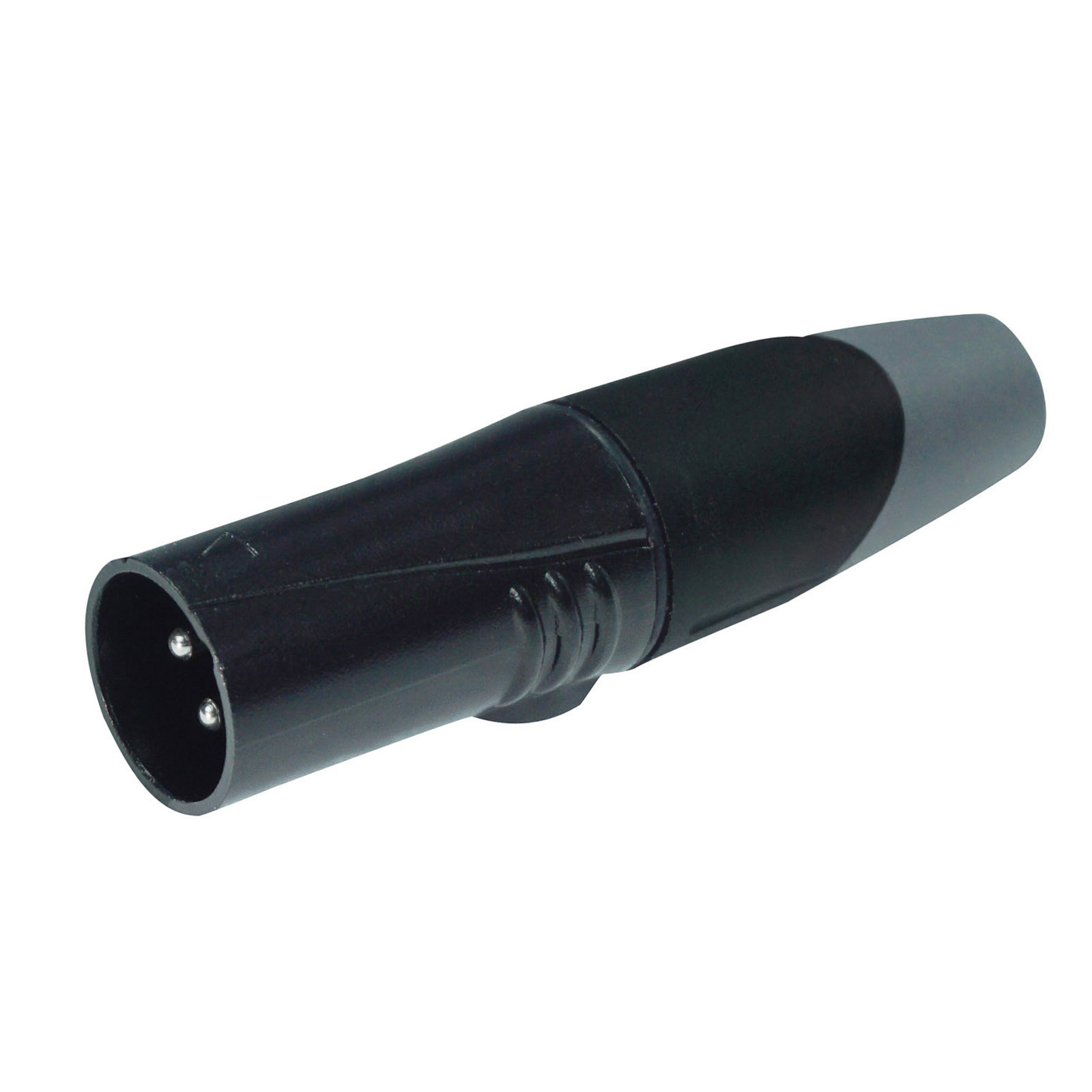

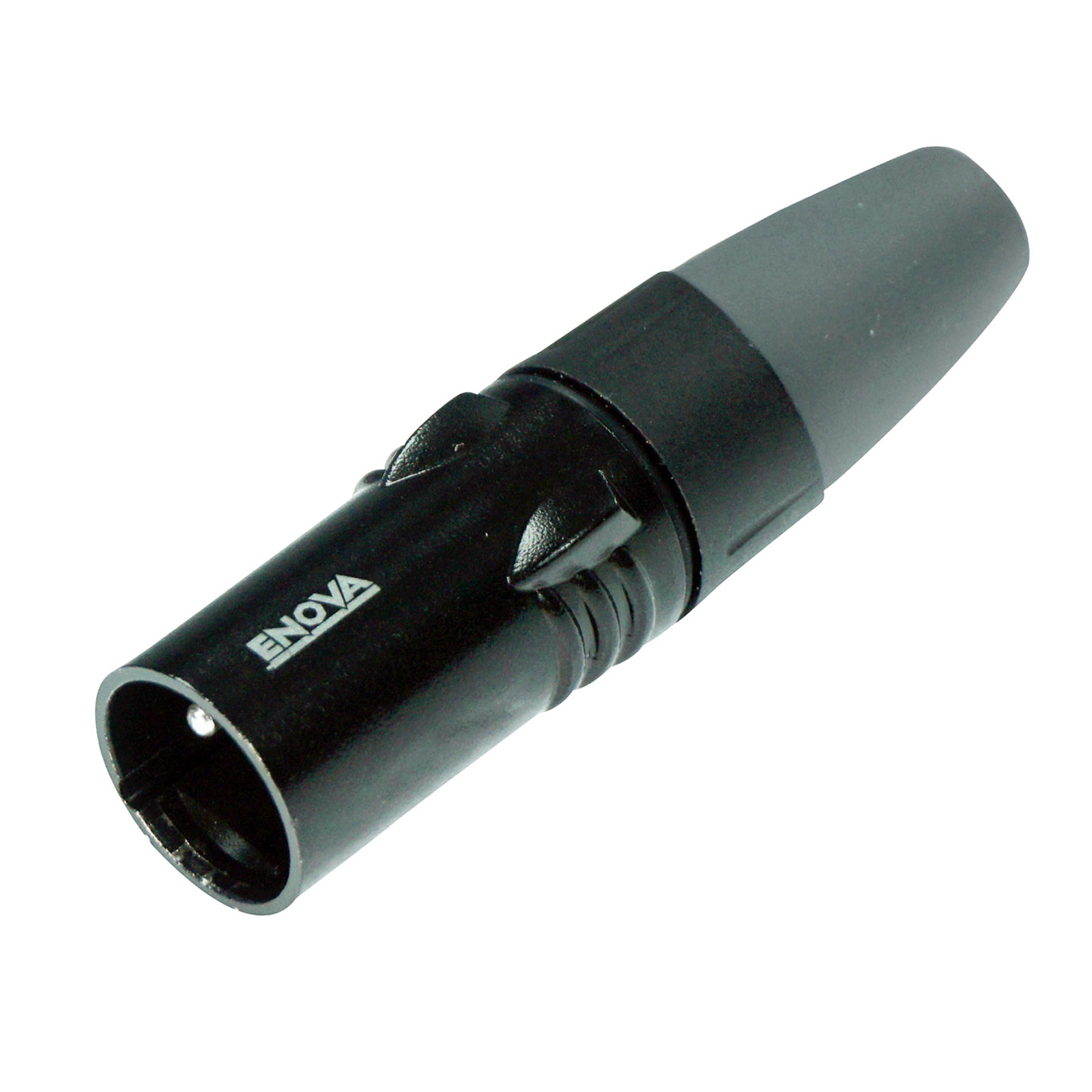

Enovas Male XLR cable connector featuring three contacts and a well-formed and robust button for a better user experience whilst also allowing varied cable widths to be used due to the triple-positioned removable clamp.
Out of stock
Enovas XLR cable connector has a triple-positioned removable clamp to prevent the inner cable from twisting and or breaking and to allow for different cable types to be used. By removing the outer diameter washes, cable sizing’s from 3.3 to 4.8mm can be used. The standard connection for the outside diameter can be from 5.0 to 6.5mm, and by removing the outer diameter clamp, widths from 6.5 to 7.0mm can be used.
| Series: | XL-Series |
| Version (Plug / Chassis): | Cable Version |
| Connector type: | XLR, XLR male 3 pol |
| Number of contacts: | 3 |
| Gender (M / F): | Male plug |
| Connector housing color: | Black |
| Cable diameter min. in mm: | Ø 3.3 mm |
| Cable diameter max. in mm: | Ø 7 mm |
| L x W x H: | 75.1 x 22 x 22 mm |
| Wiring mode: | Solder contact |
| Material connector housing: | ZZNAL4-1 |
| Material contact: | H59-1 |
| Working temperature minimum: | -30° |
| Working temperature maximum: | +80° |
| Plug cycle: | 1000 |
| Classification flammability of plastics: | UL94HB |
| ROHS according to EN62321-1: | Ja |
| Operating voltage (VAC.RMS): | < 50 V |
| Insulation resistance: | > 10 GΩ |
| Contact resistance: | ≤ 3 mΩ |
