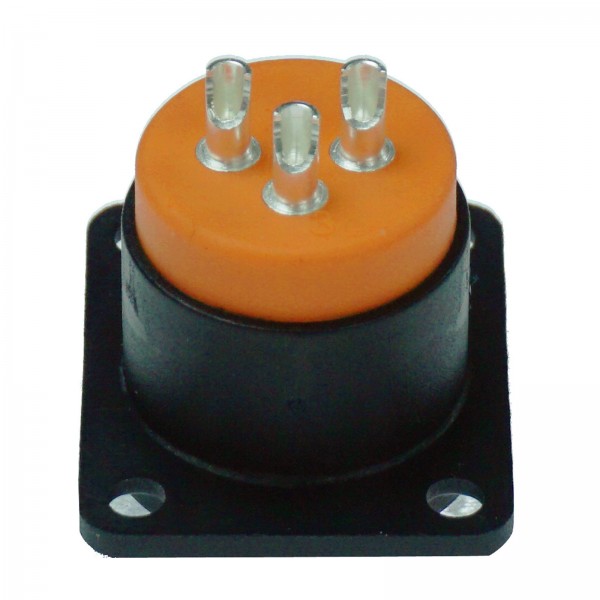

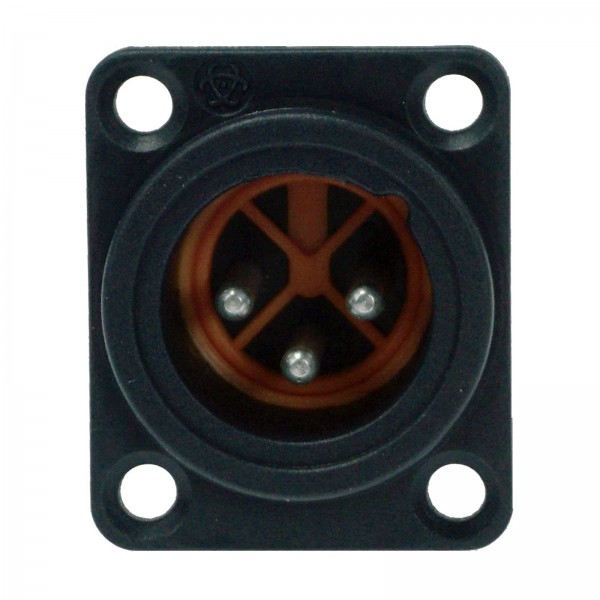

ENOVA Male XLR Chassis Connector IP67 (3Pin)

XLR panel sockets male 3 Pin black with IP protection in mated condition with the appropriate XL23FB-W

£3.36 - (£2.80 ex VAT)

Loading...

Product Description

XLR panel sockets male 3 Pin black with IP protection in mated condition with the appropriate XL23FB-W cable socket. Solder version for easy mounting via XLR Ø 23 – 24 mm Cut Out. The XLR chassis connector is suitable for rack construction, connection panels or wall sockets. Precise XLR standard plug-in systems for exterior lighting and sound applications. The regulation on the appropriate cable socket ensures a secure and robust connection.
Depth: 28 mm
Width: 26 mm
Height: 31 mm

Series: XLIP-Series
Version (Plug / Chassis): Chassis version
Connector type: XLR, XLR male 3 pol
Number of contacts: 3
Contact diameter in mm: 3 x Ø 2.00 mm, 3 x Ø 2.70 mm
Gender (M / F): Female connector
Connector housing color: Black
Wiring mode: Solder contact
Installation diameter in mm: Ø 24.00 mm
Installation fixing height x width in mm: 24.00 mm x 19.00 mm
Number of mounting holes: 2
Mounting hole diameter mm: 3.5 mm
Material connector housing: PA
Material contact: H59-1
Waterproof component: TPR
Working temperature minimum: -30°
Working temperature maximum: +80°
Plug cycle: 1000
IP protection class according to EN60529 2000: IP67
Classification flammability of plastics: UL94HB
ROHS according to EN62321-1: Ja
Operating voltage (VAC.RMS): < 50 V
Insulation resistance: > 10 GΩ
Contact resistance: ≤ 3 mΩ
