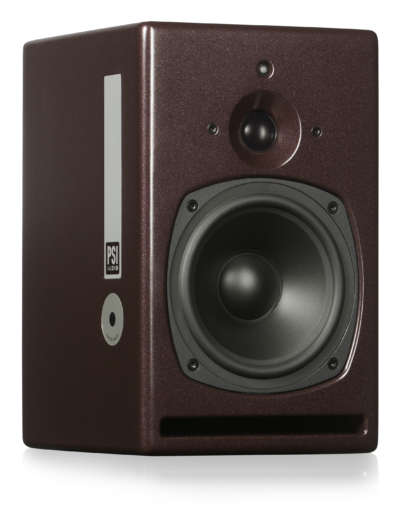

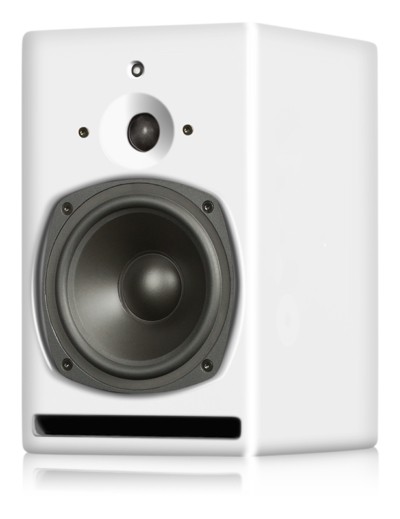

PSI Audio A17-M

Name: PSI Audio A17-M
SKU: PSI-A17M-BLK
Availability: InStock

£1,767.00 (£1,472.50 ex VAT) – £1,848.00 (£1,540.00 ex VAT)

You can trust your speakers, since it is their sound that has earned PSI Audio the respect of audio professionals all around the world. Building on over 40 years of experience and continuous development, the A17-M is the definitive nearfield monitor.

Assess your work comprehensively without a subwoofer – or enhance the A17-M with a Sub A125-M, for example. Whatever story you need to tell, the A17-M helps you get your message across – a friend you should definitely listen to.

Downloads

PSI User Manual

Download

PSI A17-M Tech Data

Download

Colour

Clear

SKU: PSI-A17M-BLK Tags: A17-M, midfield, nearfield, PSI Audio, Studio Monitors

“I found the top end of the new A17-M monitors to be incredibly open, dimensional and ultra-detailed, yet lovely and natural. The low-end presentation could be what really impresses me most about these monitors.”

– Paul Vnuk Jr., RECORDING

Design and Production Like No Other

Stereo is more than just volume differences between the left and right channels. Phase relations are paramount to determine the accurate position of a signal in the acoustic space – and hence equally important in the development of PSI Audio speakers.

The accurate phase alignment provided by PSI Audio CPR technology recreates the vivid spatial listening experience as it was intended. Instrument placement, reverb envelopes, even compression artefacts are easy to identify with the phase-corrected reproduction of PSI Audio speakers.

Designed to work in harmony with the full range of A series monitors the PSI A17-M Audio also makes ideal rear speakers in a surround sound setup.

The tweeter used in the A17-M is unique, PSI Audio’s own development and built by hand in Switzerland. Superior to any market-bought solutions, this tweeter offers unparalleled clarity, subtlety and fidelity.

The PSI Audio A17-M incorporates the full range of PSI Audio’s outstanding technologies in a compact form. The powerful bi-amplified output features the unique “AOI” output stages, while the active crossover, with integrated “CPR”, delivers unprecedented impulse behaviour – with excellent stereo imaging.

The combination of AOI along with other PSI Audio technologies like Compensated Phase Response, means that the outcome is utterly exceptional sonic performance.

Specifications and Key Features

Potential peak power	170 + 45 W
Continuous max SPL @ 1m	102 dB
Short term max SPL @ 1m	105 dB
Peak max SPL @ 1m	115 dB
Signal to noise ratio (S/N)	96 dB
Bandwith at -6 dB	44-23,000 Hz
SPL tolerances	±2.2 dB
Phase tolerances	±45 (300 Hz – 20 kHz) degrees
Dispersion (H x V)	75 x 40 degrees
System	2 ways
Crossover frequency	3500 Hz
Woofer exterior diameter	180 mm
Woofer diaphragm diameter	130 mm
Tweeter exterior diameter	90 mm
Tweeter diaphragm diameter	27 mm
Dimensions W x H x D	163 x 243 x 170 mm
Net Weight	4.9 kg
Input connector	1 x XLR F / 3P
Warranty	5 (+1) Years

100% Analogue – No DSP
Perfect stereo image
Class A/B Amplifiers
Frequency Range of 43Hz – 23kHz
Individually calibrated
5 + 1 years warranty
Protection circuits with overload indicator.
Magnetically shielded for use close to video monitors.
Designed for stereo and multichannel monitoring
Optimised directivity by phase coherency.
Flat frequency response
CPR, AOI, ALG, PSC*
