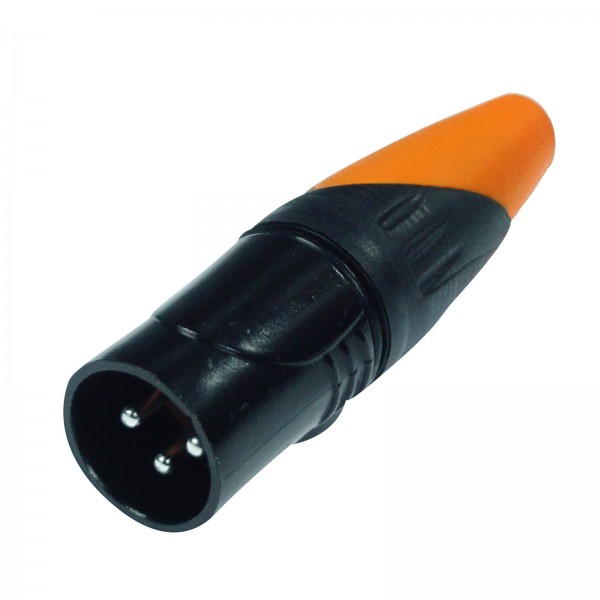

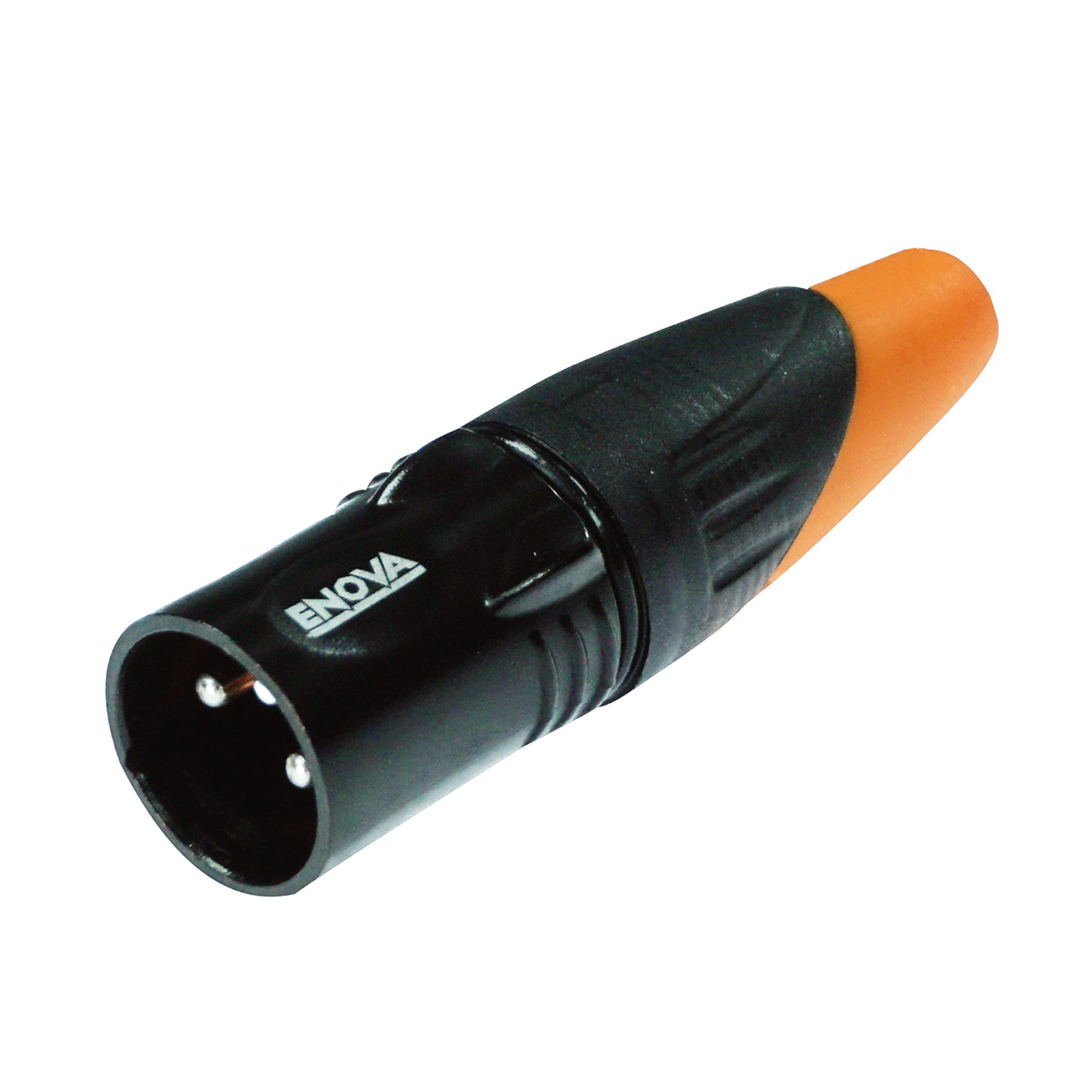

ENOVA Male XLR Connector IP67 (3pin)

XLR cable connector 3-pin. Plug-in IP67 protection with the appropriate XL23FB-W cable socket or the XL13FB-W panel socket.

£4.94 - (£4.12 ex VAT)

SKU: XL23MB-W Categories: , , , Tags: , , ,
Loading...

Product Description

XLR cable connector 3-pin. Plug-in IP67 protection with the appropriate XL23FB-W cable socket or the XL13FB-W panel socket. A handy shape and a well-formed and robust button make for a better user experience.
The rear nozzle is liquid and dustproof.
The 3-pin XLR cable connector has a triple-positioned clamp to prevent the inner cable from twisting and breaking.
Length: 67.5 mm
Width: 19.5 mm
Height: 19.5 mm

Series: XLIP-Series
Version (Plug / Chassis): Cable Version
Connector type: XLR, XLR male 3 pol
Number of contacts: 3
Contact diameter in mm: 3 x Ø 2.70 mm
Gender (M / F): Male plug
Connector housing color: Black
Cable diameter min. in mm: Ø 5.5 mm
Cable diameter max. in mm: Ø 6 mm
Wiring mode: Solder contact
Insulation component: High performance plastics
Material connector housing: ZZNAL4-1
Material contact: H59-1
Waterproof component: NBR
Working temperature minimum: -30°
Plug cycle: 1000
IP protection class according to EN60529 2000: IP67
Classification flammability of plastics: UL94HB
ROHS according to EN62321-1: Ja
Operating voltage (VAC.RMS): < 50 V
Insulation resistance: > 10 GΩ
Contact resistance: ≤ 3 mΩ
