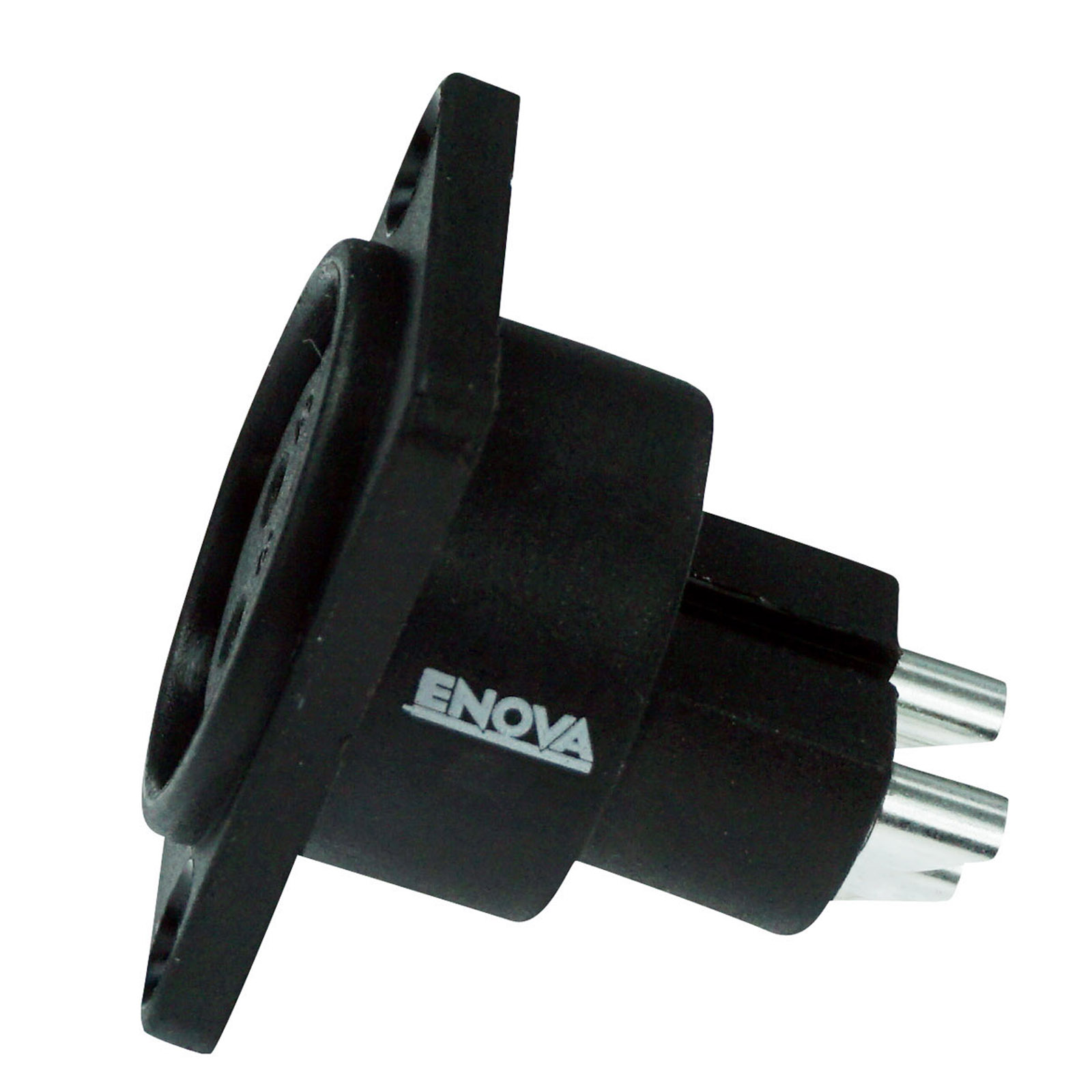

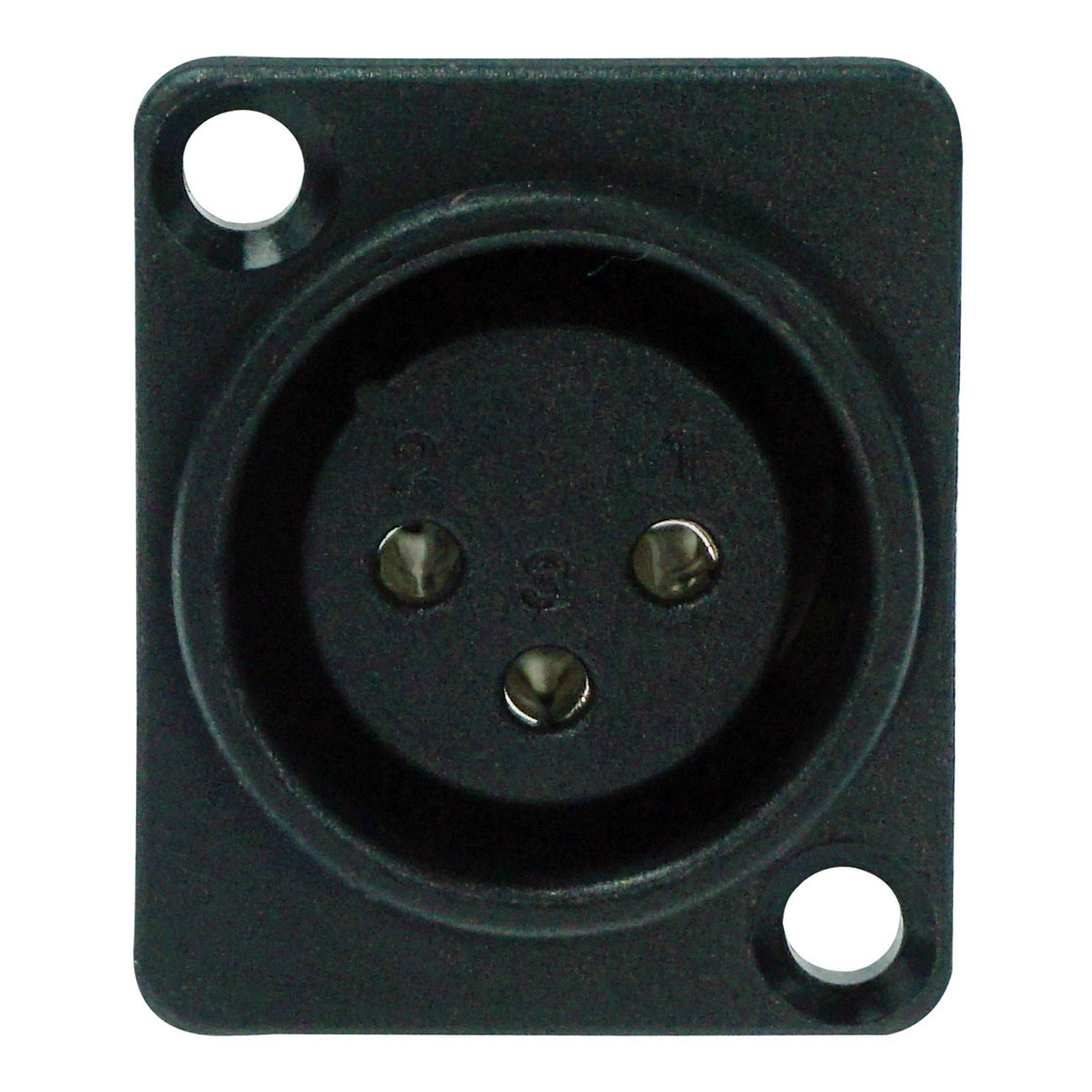

ENOVA Female XLR Chassis Connector (3pin)

XLR panel sockets female 3 Pin black for indoor applications.

£3.56 - (£2.97 ex VAT)


Product Description

XLR panel sockets female 3 Pin black for indoor applications. Solder version for easy mounting via XLR Ø 24 mm Cut Out. The XLR chassis jack is suitable for rack construction, connection panels or wall sockets. Precise XLR standard plug-in systems for exterior lighting and sound applications. The regulation ensures a secure and robust connection. By pressing the push button, the plug or the microphone cable can be unlocked easily.
Depth: 30.6 mm
Width: 26 mm
Height: 31 mm

Series: XL-Series
Version (Plug / Chassis): Chassis version
Connector type: XLR, XLR female 3 pol
Number of contacts: 3
Contact diameter in mm: 3 x Ø 2.86 mm
Gender (M / F): Female connector
Connector housing color: Black
Wiring mode: Solder contact
Installation diameter in mm: Ø 24.00 mm
Installation fixing height x width in mm: 24.00 mm x 19.00 mm
Number of mounting holes: 2
Mounting hole diameter mm: 3.6 mm
Insulation component: High performance plastics
Material connector housing: ZZNAL4-1
Material contact: Phosphor Bronze
Working temperature minimum: -30°
Plug cycle: 1000
ROHS according to EN62321-1: Ja
Operating voltage (VAC.RMS): < 50 V
Insulation resistance: > 10 GΩ
Contact resistance: ≤ 3 mΩ
