Call for Price

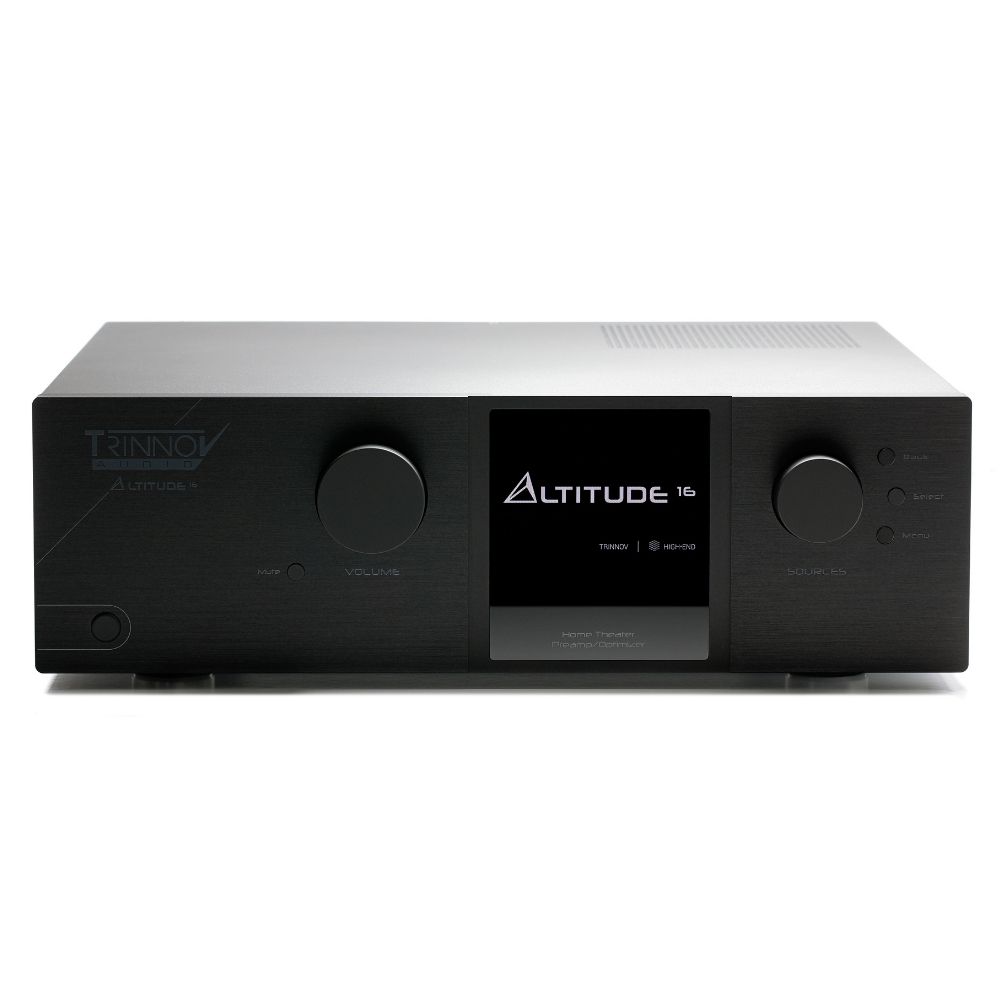

Altitude16 brings unrivalled immersive audio experience into your home through Trinnov’s groundbreaking and award winning Room Optimiser technology. Complete with the ability to decode Dolby Atmos®, Auro-3D®, DTS:X® Dolby Digital Plus®, Dolby TrueHD®, DTS Digital Surround® and DTS-HD Master Audio®, the Altitude16 is the ultimate way to enjoy audio at home.
Trinnov has been at the forefront of 3D audio since the beginning, and that shows with the Altitude16. It’s the most sophisticated and flexible processor I’ve encountered, and while not cheap it certainly delivers the goods, creating a seamless immersive audio experience thanks to its 16-channel talents.
– Steve Withers, Home Cinema Choice (UK)
The acoustics of a room affects the sound that you hear coming from your speakers which in turn affects the way you manipulate your mix. Traditional methods of acoustic treatment will help to control this but there are still artefacts that cannot be corrected by acoustics alone. Trinnov Audio has developed a range of stereo and surround optimisers using the latest DSP real-time processing that will improve the accuracy of your room through your speaker system.
Trinnov has applied the results of breakthrough research in loudspeaker/room acoustics to create a new generation of loudspeaker processors, setting a new benchmark for accurate sound reproduction. The Trinnov Optimizer takes mix translation to the next level.
While the room and the loudspeakers need to be analysed and eventually treated separately by most technologies on the market, the Optimizer considers and addresses every aspect of the reproduction system in its acoustic environment at the same time. Problems are identified, cross-analysed and compensated with the most efficient and best-sounding compromise.
Altitude16 brings unrivalled immersive audio experience into your home through Trinnov Audio’s groundbreaking and award winning Room Optimiser technology. Complete with the ability to decode Dolby Atmos®, Auro-3D®, DTS:X Dolby Digital Plus®, Dolby TrueHD®, DTS Digital Surround® and DTS-HD Master Audio®, the Altitude16 is the ultimate way to enjoy audio at home.
Our world-renowned Loudspeaker/Room Optimizer is recognized as best-in-class by users and reviewers across the professional, commercial cinema and high-end home audio worlds. Introduced to the pro audio market in 2006, its revolutionary solution was quickly embraced by many of the most demanding music, broadcast and post-production sound engineers.
During calibration, Trinnov’s unique 3D microphone precisely maps the location of each loudspeaker in the room regarding distance, azimuth, and elevation.
Includes a 5 Year Warranty.
The Altitude16 joins the Altitude32 as the only AV Processors on the market capable of decoding and rendering Dolby Atmos Home content with any 20-channel speaker layout.
When it comes to channel count, the devil is in the details when it matters which channels are supported. Within its 20-channel capability, the Altitude16 supports any speaker layout, including multiple side surround speakers and high numbers of subwoofers.
HDMI and its evolving standards continue to create challenges for manufacturers, integrators and end users. Rest assured that the Altitude philosophy of sustainability applies to HDMI. The Altitude’s modular hardware design ensures that future developments of the HDMI standard will not make the processor obsolete. All Altitudes will be upgradeable to HDMI 2.1.
Today, our proprietary software platform enables users to monitor and analyze all incoming and outgoing HDMI data directly on the Altitude, in addition to providing unique tools that can address HDMI incompatibility issues.

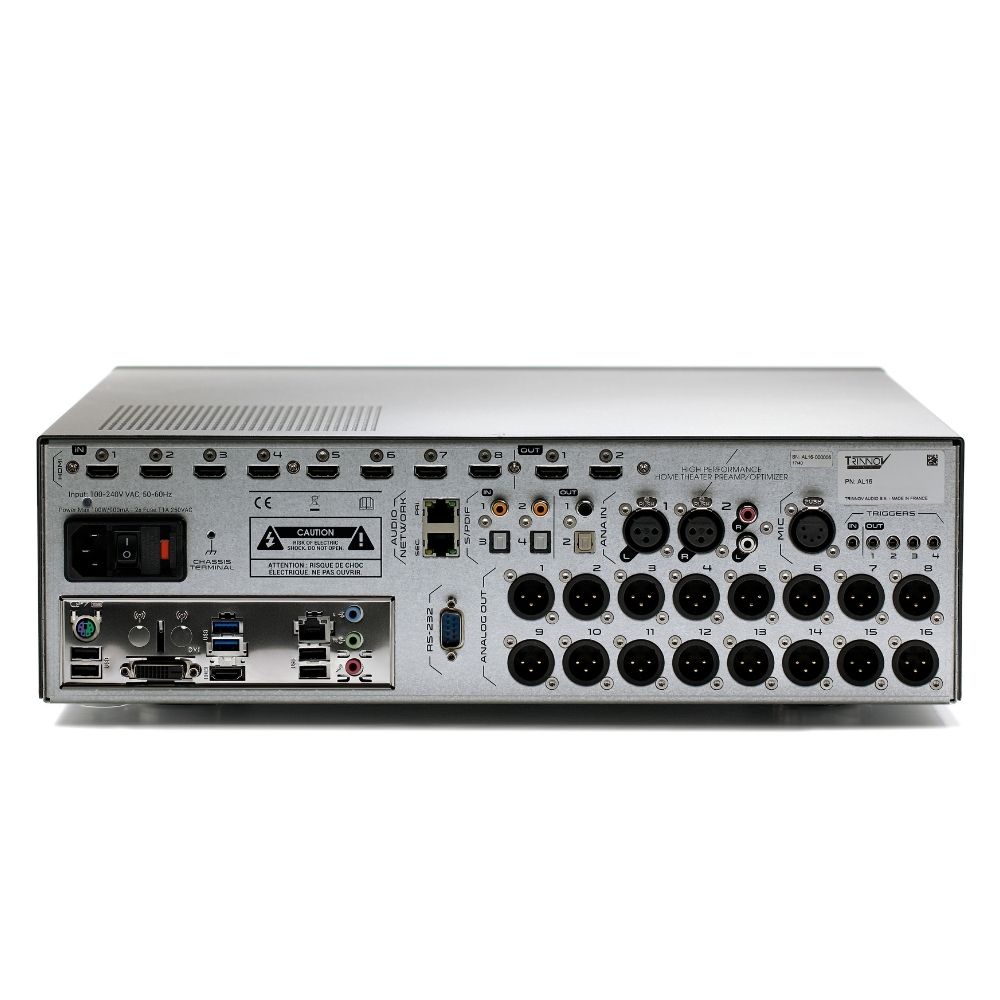

| Microphone Input | 1x 5 pin XLR for 3D Microphone |
| Balanced Inputs | 1x Stereo XLR |
| Unbalanced Inputs | 1x Stereo RCA |
| Input Impedance | 20k Ohms/10k Ohms |
| S/PDIF Inputs | x4 (2 Optical, 2 Coaxial) |
| S/PDIF Outputs | x2 (1 Optical, 1 Coaxial) |
| +4 Outputs | By Combining Analogue and S/PDIF Outputs |
| Audio Network | Dual Ports (For Future Use) |
| Max Sampling Rate | Native, up to 96 kHz |
| Data Precision | 64 Bits, Floating Point |
| Video Output 1 | HDMI 2.0/HDCP 2.2 |
| Video Output 2 | HDMI 2.0/HDCP 2.2 |
| Video Inputs | 8x |
| Maximum Resolution | 4K UHD on all I/O |
| Maximum Bandwidth | 18 Gbps on all inputs |
| Frame Rates Supported | 24/25/30/50/60 fps (UHD) 120 fps (HD) |
| ARC/eARC | Available on Output 1 |
| OSD | Volume Information Displayed On-screen |
| Dolby Atmos® Native Decoding & Up-mix | Up to 20 Discrete Channels |
| Auro-3D® Native Decoding & Mix-up (Auromatic) | Up to 13.1 |
| DTS:X® Pro | Up to 20 Discrete Channels |
| Speaker Layouts Support | All |
| IMAX Enhanced | Yes |
| Processor | Intel Multi Core Hyper Threaded |
| ADC Resolution/Sampling Rate | 24 Bits/96 kHz |
| DAC Resolution/Sampling Rate | 24 Bits/192 kHz |
| A/D Signal-to-noise Ratio | 119 dB (A-weighted) |
| D/A Signal-to-noise Ratio | 118 dB (A-weighted) |
| Reference Level | +18 dBu @ 0 dBFS (Balanced) |
| Clock/Jitter Attenuation | > 50 dB above 100 Hz |
| Cooling System | Custom Heat Sinks + Additional Silent Fans |
| Safety Components | AntiPop Relays on each output |
| Power Requirement | 100 – 240V (Auto Selecting) |
| Power Consumption | 76W Max |
| Thermal Conversion | 260 BTU/h Max |
| Mains Fuse | 2x 1A Slow Blow |
| Internal PSUs | Separated Supplies for Audio and Processing |
| Dimensions (W x H x D) | 438 x 139 x 430 mm |
| Shipping Dimensions (L x H x P) | 740 x 590 x 300 mm |
| Weight | 11.3 kg/24.9 lbs |
| Shipping Weight/Volume | 18.2 kg/0.131 m3 |
| Rackmounting | 3U – Rack Ears Included |
