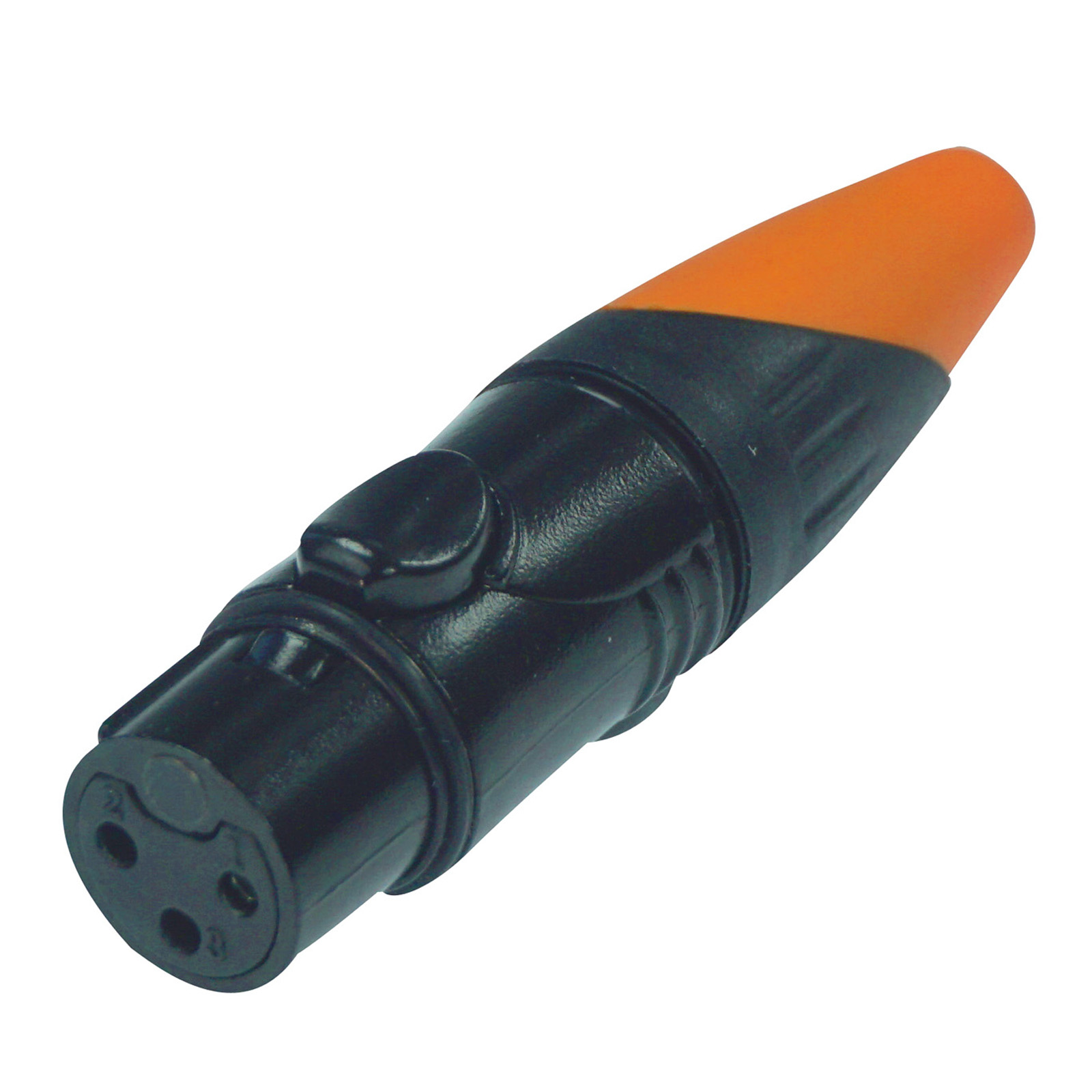

ENOVA Female XLR Connector IP67 (3pin)

XLR cable socket 3-pin. IP67 protection when plugged in with the matching cable plug XL23MB-W or the plug XL13MB-W.

£5.33 - (£4.44 ex VAT)

SKU: XL23FB-W Categories: , , , Tags: , , ,
Loading...

Product Description

XLR cable socket 3-pin. IP67 protection when plugged in with the matching cable plug XL23MB-W or the plug XL13MB-W. A handy shape and a well-formed and robust button make for a better user experience.
The rear nozzle is liquid and dustproof.
Length: 80 mm
Width: 22 mm
Height: 22 mm

Series: XLIP-Series
Version (Plug / Chassis): Cable Version
Connector type: XLR, XLR female 3 pol
Number of contacts: 3
Contact diameter in mm: 3 x Ø 2.70 mm
Gender (M / F): Female connector
Connector housing color: Black
Cable diameter min. in mm: Ø 3.3 mm, Ø 5.5 mm
Cable diameter max. in mm: Ø 6 mm, Ø 7 mm
Wiring mode: Solder contact
Insulation component: High performance plastics
Material connector housing: ZZNAL4-1
Material contact: Phosphor Bronze
Waterproof component: NBR
Working temperature minimum: -30°
Plug cycle: 1000
IP protection class according to EN60529 2000: IP67
Classification flammability of plastics: UL94HB
ROHS according to EN62321-1: Ja
Operating voltage (VAC.RMS): < 50 V
Insulation resistance: > 10 GΩ
Contact resistance: ≤ 3 mΩ
