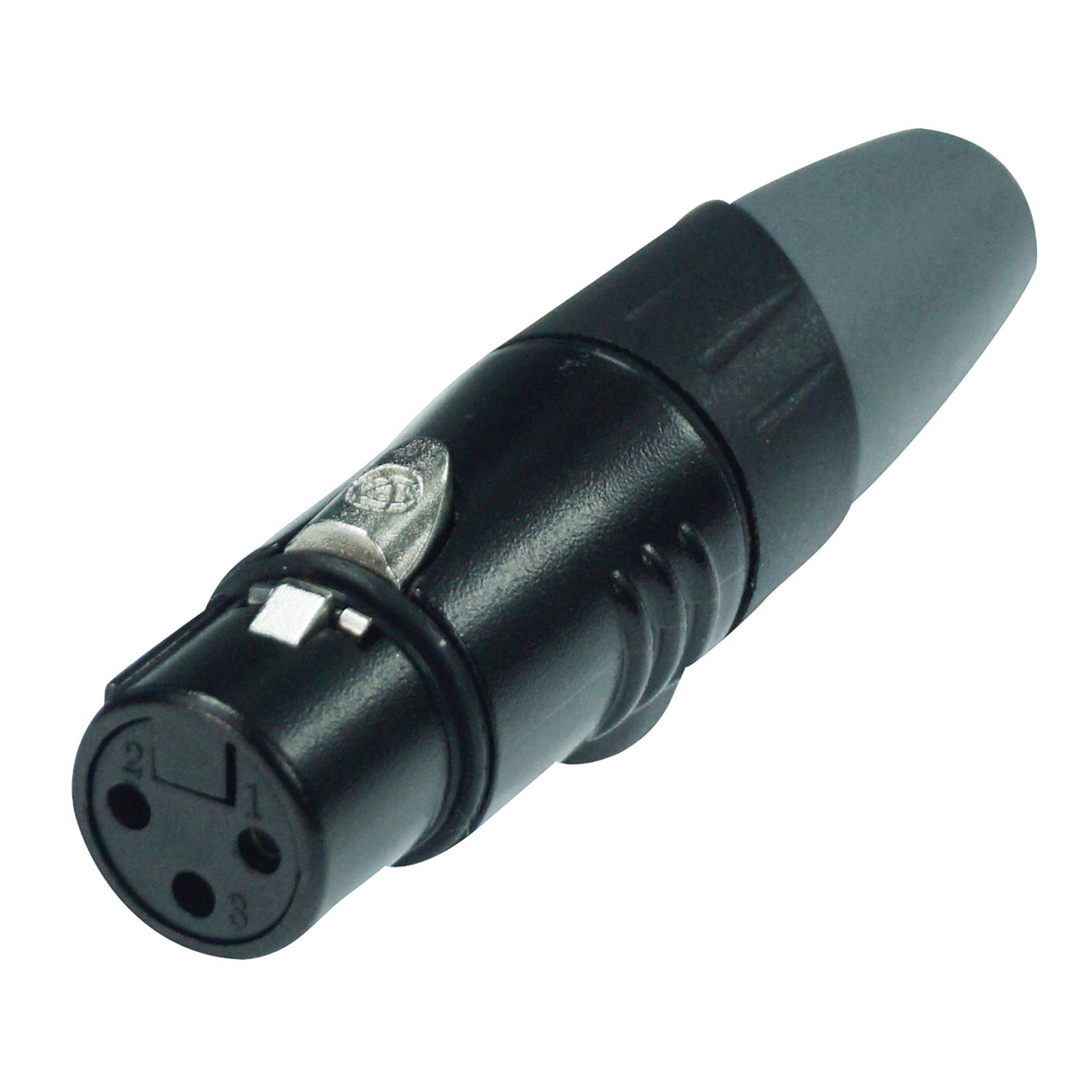

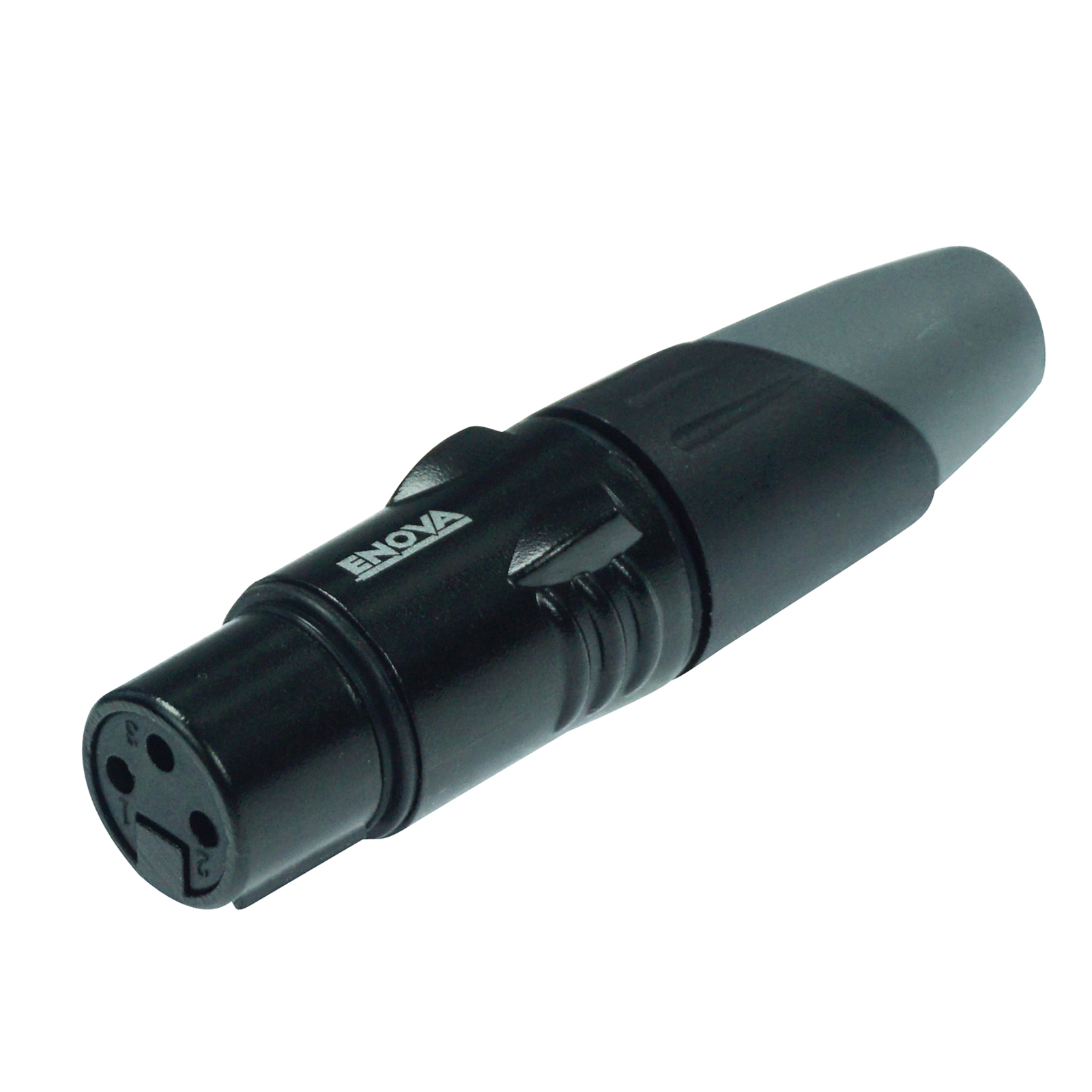

ENOVA Female XLR Connector (3pin)

XLR three-contact cable jack with a well-formed and robust button for a better user experience

£3.76 - (£3.13 ex VAT)

SKU: XL23FB Categories: , , , Tags: , ,
Loading...

Product Description

XLR three-contact cable jack with a well-formed and robust button for a better user experience
The 3-pin XLR connector has a triple-positioned clamp to prevent the inner cable from twisting and breaking.
This removable clamp is designed for multiple cable types
Remove the outer diameter washers: 3.3 to 4.8 mm
Standard connection for outside diameter: 5.0 to 6.5 mm
Remove the outer diameter clamp: 6.5 to 7.0 mm
Reliable locking: Tighten with the zinc shell nut.
Inner lock hole design for longer life of the plug
Length: 78 mm
Width: 22 mm
Height: 22 mm

Series: XL-Series
Version (Plug / Chassis): Cable Version
Connector type: XLR, XLR female 3 pol
Number of contacts: 3
Gender (M / F): Female connector
Connector housing color: Black
Cable diameter min. in mm: Ø 3.3 mm
Cable diameter max. in mm: Ø 7 mm
Wiring mode: Solder contact
Insulation component: High performance plastics
Material connector housing: ZZNAL4-1
Material contact: Phosphor Bronze
Waterproof component: silicone
Working temperature minimum: -30°
Working temperature maximum: +80°
Plug cycle: 1000
Classification flammability of plastics: UL94HB
ROHS according to EN62321-1: Ja
Operating voltage (VAC.RMS): < 50 V
Insulation resistance: > 10 GΩ
Contact resistance: ≤ 3 mΩ
